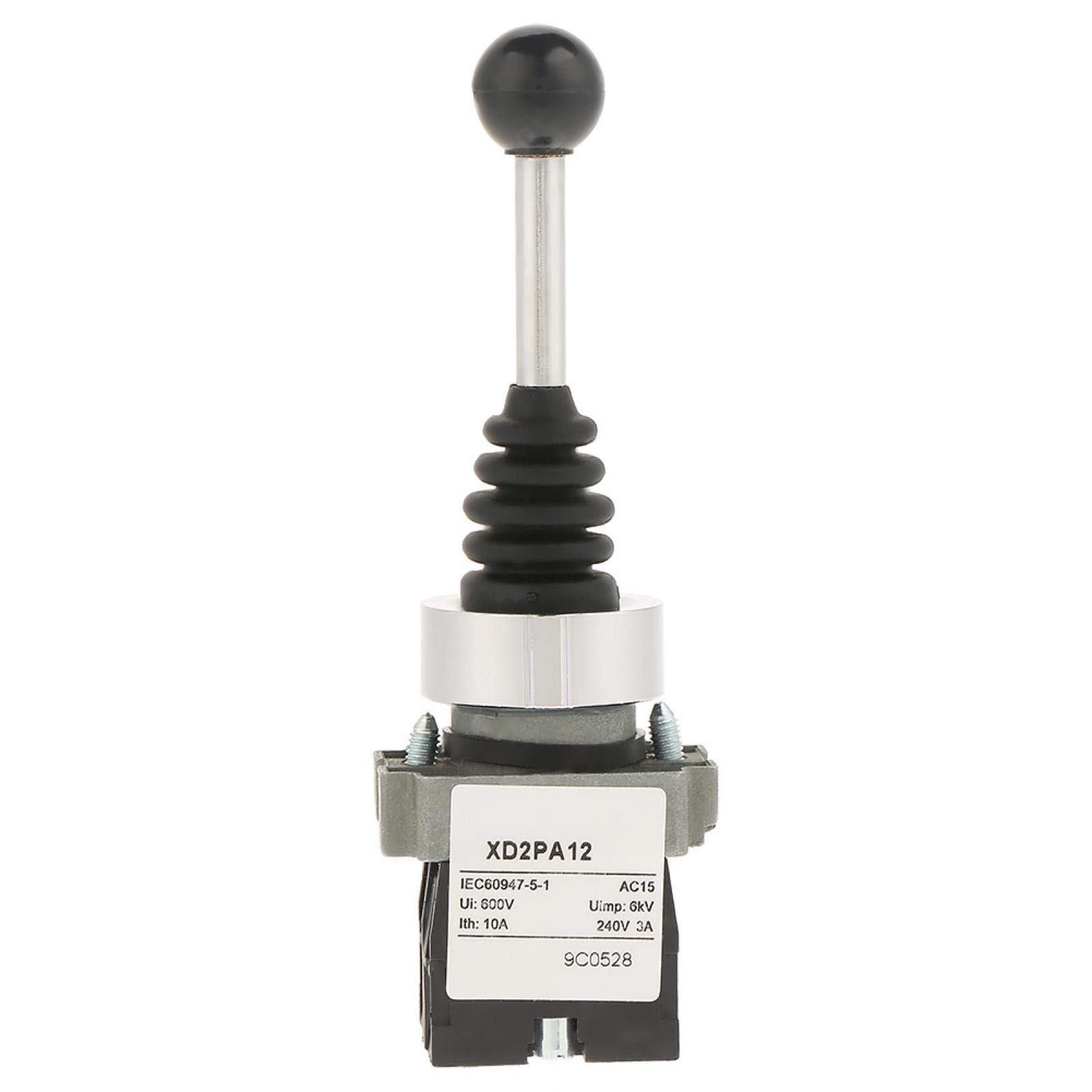

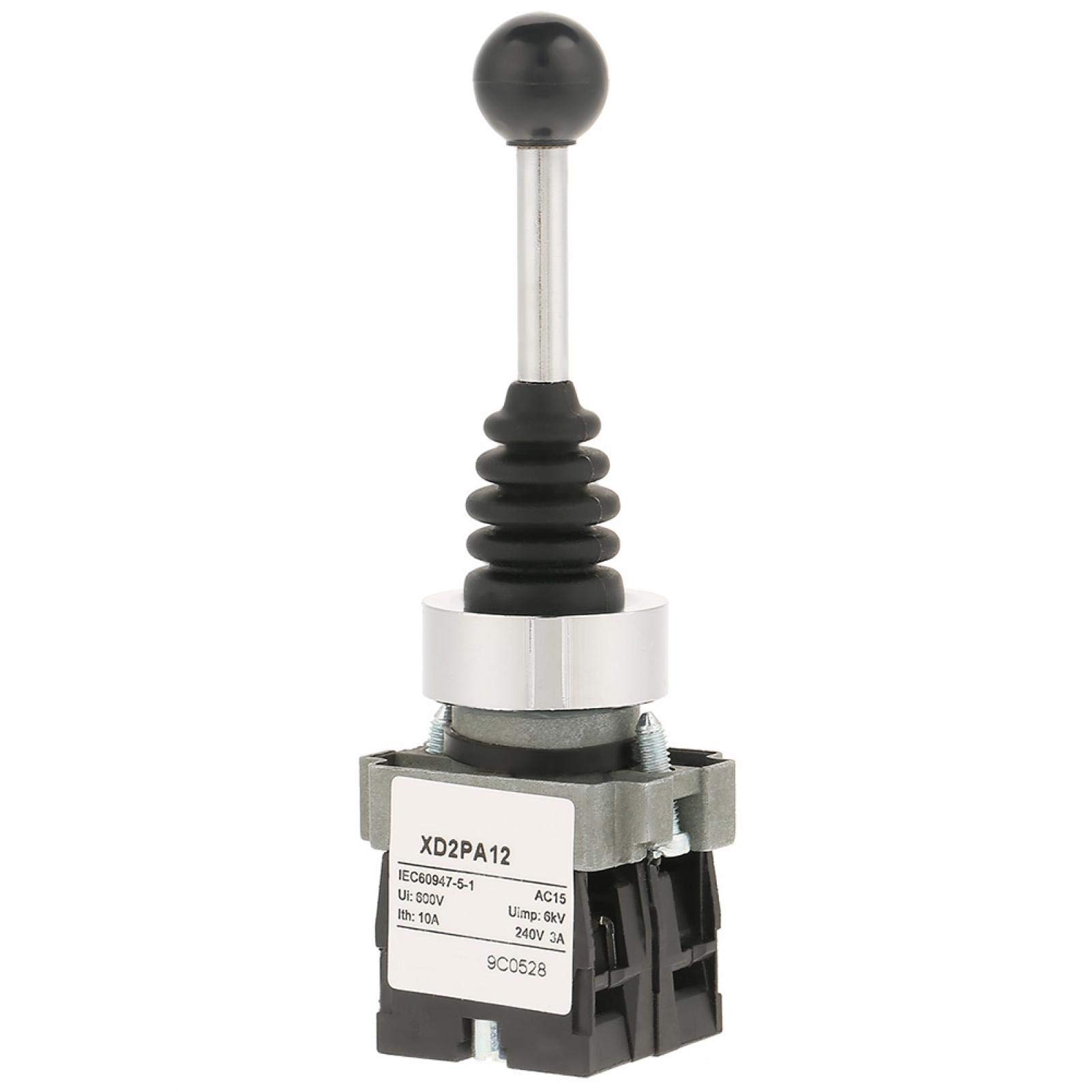

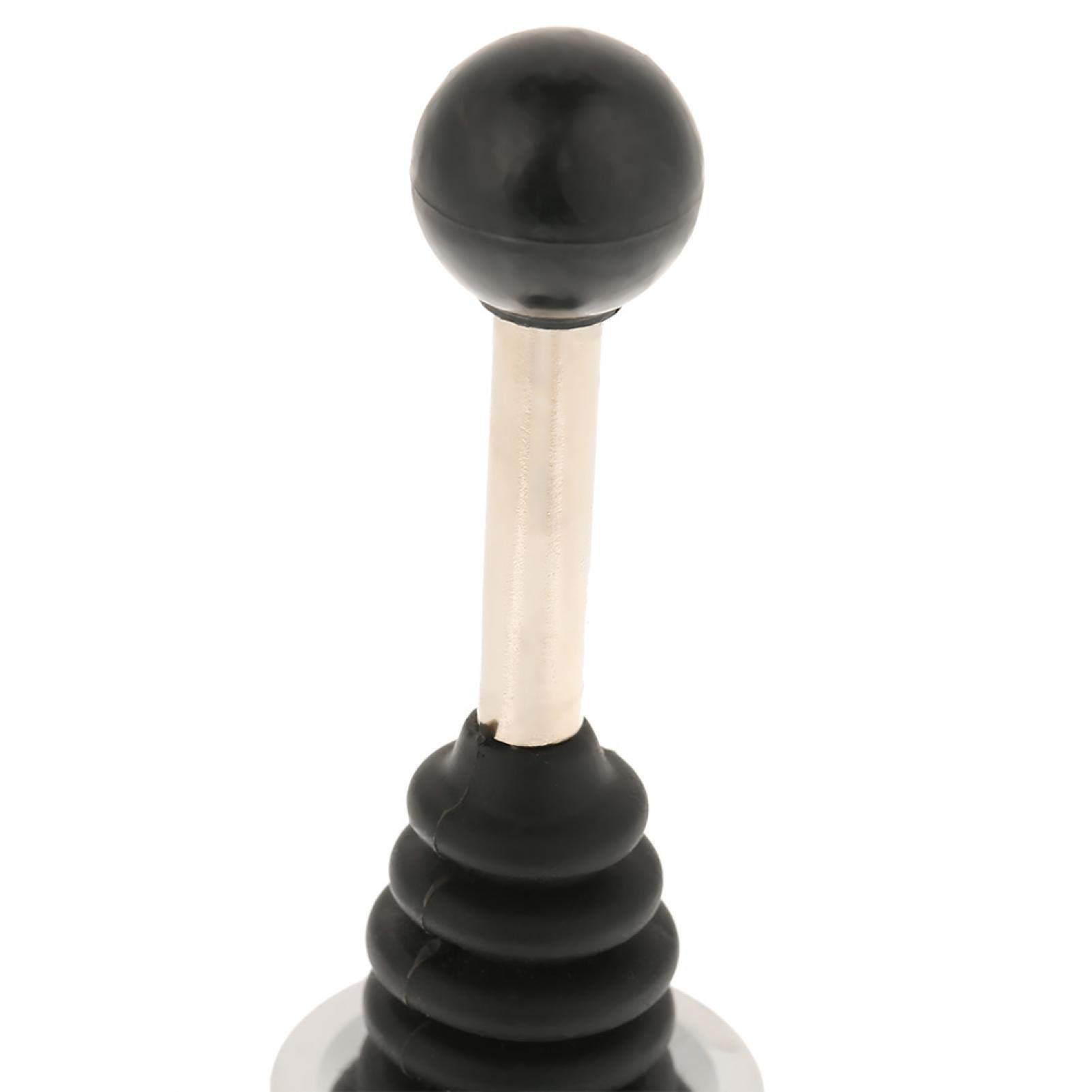

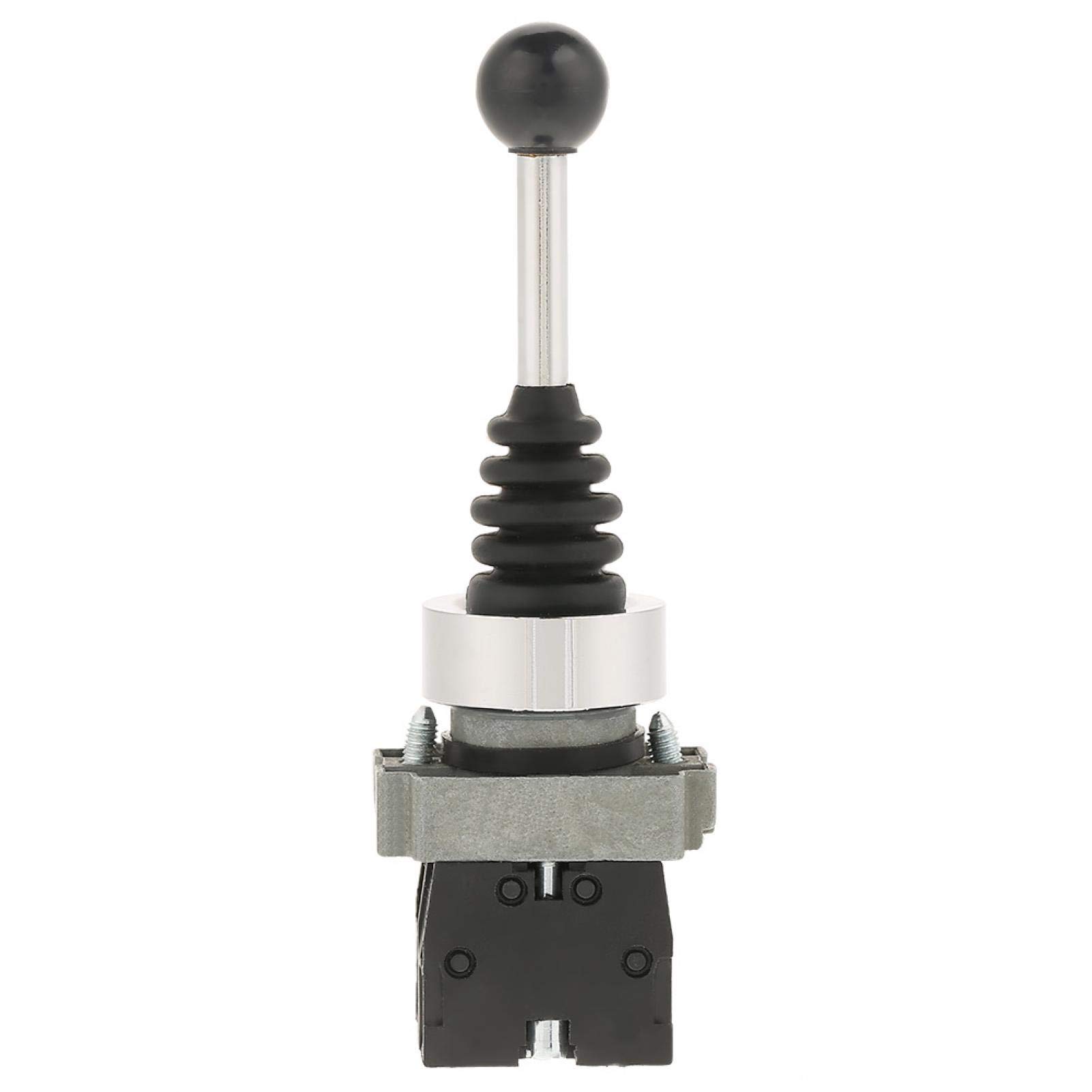

Features: - This momentary joystick switch is widely used for industrial control AC 50Hz and DC circuits. - It can control magnetic starter, contactor, relay and other electrical circuits. - The rubber sleeve has the characteristic of water , oil and dust . - The joystick switch is a momentary switch, is 2NO type, so it has 2 normally open contacts. - This switch is easy for mounting and operation, with long serving life. Specifications: Model: XD2PA12 : 2 NO Rated voltage: 220V / 380V Rated current: 5A / 10A Assembly aperture: Dia. 22 mm Electrical life: >500,000 times Mechanical life: > 500,000 times Standard operating environment: Ambient temperature: -25 ~ +55 degrees Celsius (no ice) Operating humidity: 45 ~ 85%RH (no condensation) : ?50m? Insulation : ?100? maximum withstand voltage: 3000V, AC 50Hz Vibration: 50 Hz, amplitude: Approx. 1mm Impact : > 10m/(about 10G) grade: IP55 Overall size: 12.3 x 4cm / 4.84 x 1.57inch Weight: 124g Package Includes: 1 x Joystick Switch
